Lifting web sling 4 inch, 1 and 2 ply

← Back
    • Lifting web sling 4 inch, 1 and 2 ply

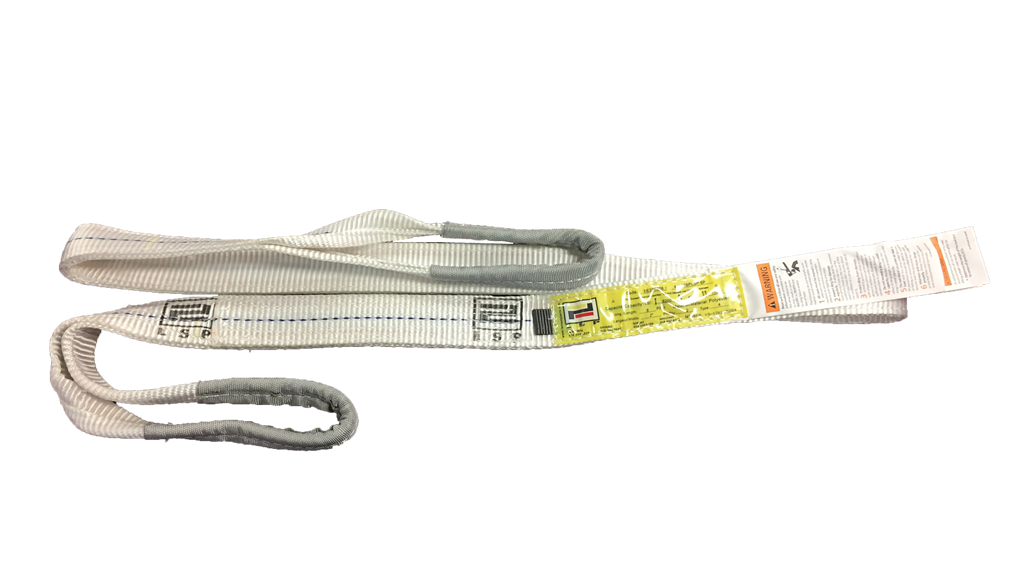

    Lifting web sling 4 inch, 1 and 2 ply

    2018-10-26 14:09:28

    The sling have a width ranging from 1 inch to 24 inches. They offer great flexibility to meet all your lifting needs up to 120,000 pounds. Our commercial and industrial straps meet the stringent standards of ASME and WSTDA. Our straps are made of high tenacity synthetic yarns, chosen for their exceptional strength, abrasion resistance and chemical properties

    FEATURES

    • Lightweight and easy to handle
    • Easy to read labels
    • All nylon or polyester slings have a safety factor of 5:1
    • Use them with overhead cranes, winches or hoists
    • The slings can be designed to double, triple or quadruple ply
    • Optional wear protection
    • Other lengths available in special manufacturing on request

    *     Web Sling in stock *


    one ply

    STOCK No.

    WIDTH

    DESCRIPTION

    APPROX. WEIGHT

    in

    mm

    lb

    kg

    419043PLSP-6P

    4

    102

    POLYESTER SLING SPN-4 1904 3’ LSP

    0.77

    0.35

    419044PLSP-6P

    4

    102

    POLYESTER SLING SPN-4 1904 4’ LSP

    0.87

    0.39

    419046PLSP-6P

    4

    102

    POLYESTER SLING SPN-4 1904 6’ LSP

    1.08

    0.41

    419048PLSP-6P

    4

    102

    POLYESTER SLING SPN-4 1904 8’ LSP

    1.29

    0.59

    4190410PLSP-6P

    4

    102

    POLYESTER SLING SPN-4 1904 10’ LSP

    1.51

    0.69

    4190412PLSP-6P

    4

    102

    POLYESTER SLING SPN-4 1904 12’ LSP

    1.72

    0.78

    4190414PLSP-6P

    4

    102

    POLYESTER SLING SPN-4 1904 14’ LSP

    1.93

    0.88

    4190416PLSP-6P

    4

    102

    POLYESTER SLING SPN-4 1904 16’ LSP

    2.14

    0.97

    4190418PLSP-6P

    4

    102

    POLYESTER SLING SPN-4 1904 18’ LSP

    2.35

    1.07

    4190420PLSP-6P

    4

    102

    POLYESTER SLING SPN-4 1904 20’ LSP

    2.56

    1.16

    Safety Factor 5:1

    WORKING LOAD LIMITS

    MODEL

    VERTICAL 90 º

    CHOKER 90 º

    BASKER 90 º

    VERTICAL 90 º

    CHOKER 90 º

    BASKER 90 º

    lb

    lb

    lb

    kg

    kg

    kg

    SPN4, 1 PLY, 4 IN.

    6,200

    4,960

    12,400

    2,815

    2,252

    5,630

    • Never exceed specified working loads.

    Capacity of synthetic slings (nylon or polyester) according to class 7.

    In accordance with ASME B30.9

    TWO PLY

    STOCK No.

    WIDTH

    DESCRIPTION

    APPROX. WEIGHT

    in

    mm

    lb

    kg

    429043PLSP-6P

    4

    102

    POLYESTER SLING SPN-4 2904 3’ LSP

    2.00

    0.91

    429044PLSP-6P

    4

    102

    POLYESTER SLING SPN-4 2904 4’ LSP

    2.55

    1.16

    429046PLSP-6P

    4

    102

    POLYESTER SLING SPN-4 2904 6’ LSP

    3.50

    1.59

    429048PLSP-6P

    4

    102

    POLYESTER SLING SPN-4 2904 8’ LSP

    4.55

    2.06

    4290410PLSP-6P

    4

    102

    POLYESTER SLING SPN-4 2904 10’ LSP

    5.35

    2.43

    4290412PLSP-6P

    4

    102

    POLYESTER SLING SPN-4 2904 12’ LSP

    6.30

    2.86

    4290414PLSP-6P

    4

    102

    POLYESTER SLING SPN-4 2904 14’ LSP

    7.25

    3.29

    4290416PLSP-6P

    4

    102

    POLYESTER SLING SPN-4 2904 16’ LSP

    8.10

    3.67

    4290420PLSP-6P

    4

    102

    POLYESTER SLING SPN-4 2904 20’ LSP

    10.00

    4.54

    4290425PLSP-6P

    4

    102

    POLYESTER SLING SPN-4 2904 25’ LSP

    12.40

    5.63

    Safety Factor 5:1

    WORKING LOAD LIMITS

    MODel

    VERTICAL 90 º

    choker 90 º

    basket 90 º

    VERTICAL 90 º

    choker 90 º

    basket 90 º

    lb

    lb

    lb

    kg

    kg

    kg

    SPN4, 2 PLY, 4 IN.

    11,000

    8,800

    22,000

    4,990

    3,990

    9,980

    • Never exceed specified working loads.

    Capacity of synthetic slings (nylon or polyester) according to class 7.

    In accordance with ASME B30.9
